Integration of Dronetag BS

Betaflight​

Dronetag BS can feed GPS data to the Betaflight flight control software through XBUS protocol, acting as a GPS module. Connecting Dronetag BS to the Spektrum telemetry receiver will enable you to access live positioning data.

Betaflight Software configuration​

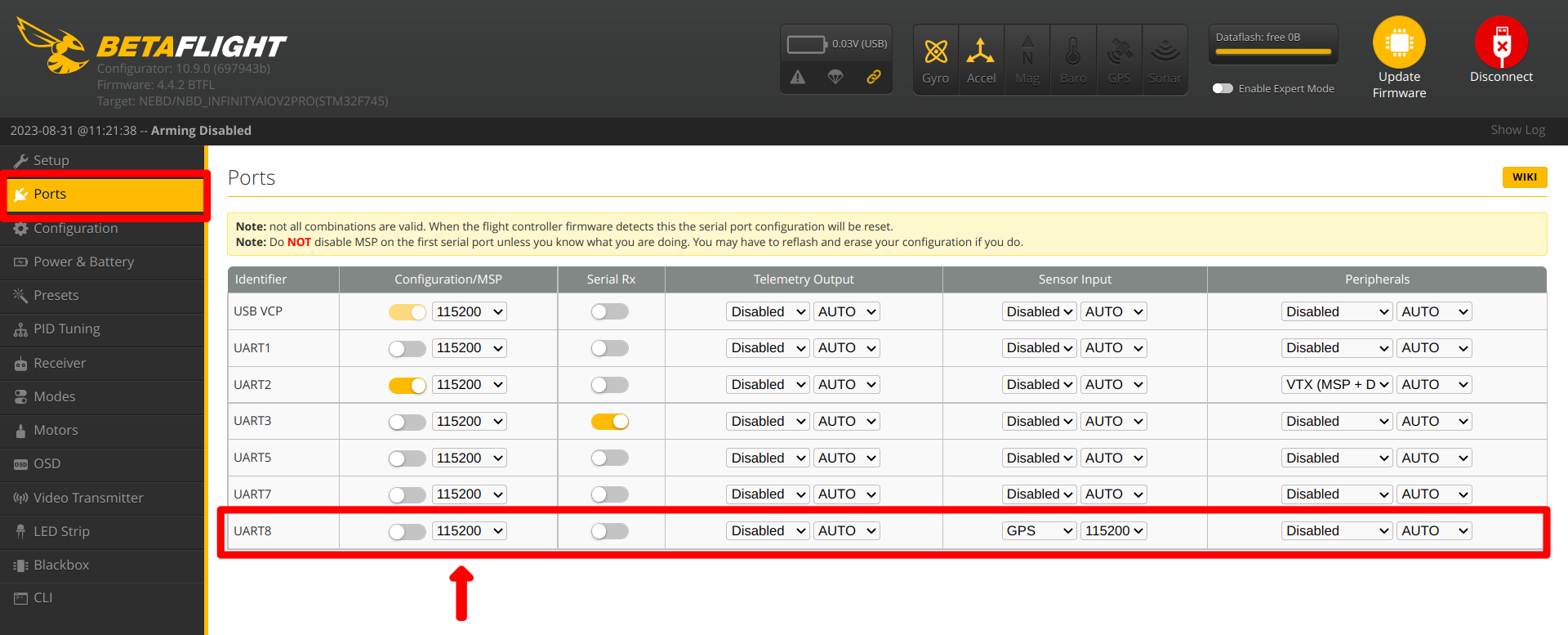

Ports​

UART X - set the Sensor Input GPS to value: 115200

Betaflight

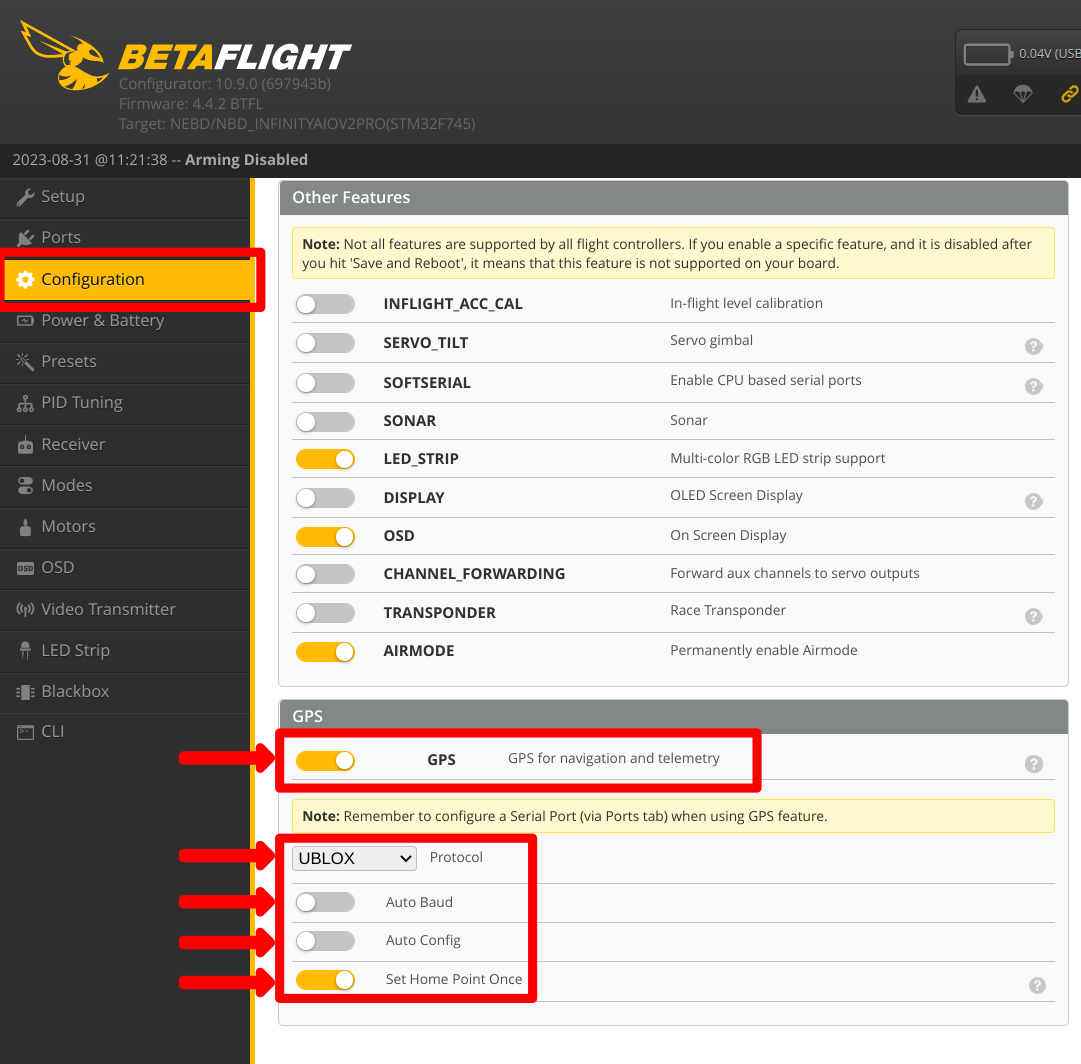

Configuration​

GPS: Enabled Protocol: UBLOX Auto Baud: Disabled Auto Config: Disabled

Betaflight

Confirmation of functionality​

Confirm in top right GPS connection. Icon should be yellow.

Betaflight

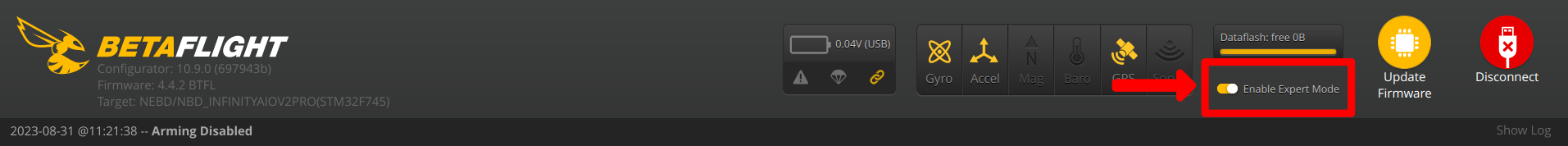

Advanced​

Expert mode look at the number of satellites. If you are having trouble getting fix with the BS please restart the Module and upload Assisted GNSS data.

Betaflight

Betaflight Flight Controller integration​

Connect the flight controller with free UART port of the Flight controller.

Example:

4-pin Connector (Placed on Left Side)​

The connector placed on left side on Dronetag BS is a common JST SH 4-pin with UART interface with no flow control. This connector will be also used for support for Betaflight communication and Spektrum Telemetry XBUS in the future.

Pin #NameScheme ColorDescription
1VCCRed3.3V to 17V. Directly connected to pin 1 at 3-pin connector
2UART RXGreenReceive of the Dronetag device (3.3V logic - 5V tolerant)
3UART TXBlueTransmit of the Dronetag device (3.3V logic - 5V tolerant)
4GroundBlackGround connection
