MMCX Antenna Installation Guide

The MMCX (Micro-Miniature Coaxial) antenna is designed for reliable connections in wireless communication modules and is widely used for its compact size. Follow this guide to ensure proper installation, handling, and safe disconnection to avoid damaging the connector on your Dronetag device.

Step-by-Step Installation​

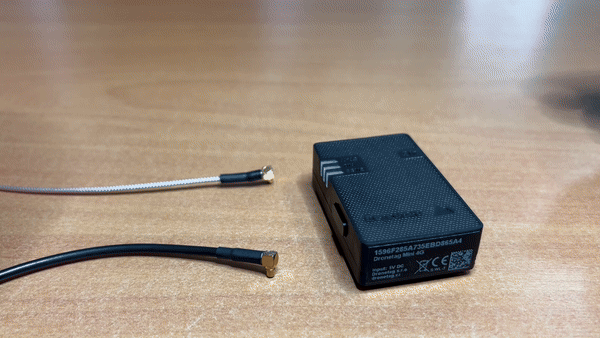

How to safely connect MMCX Connector

1. Prepare Your Workspace​

  • Work in a static-free environment to avoid potential damage to the device.
  • Ensure all components, including the antenna and the Dronetag device, are clean and free of debris.

2. Locate the MMCX Port​

  • Identify the MMCX port on the Dronetag device. It is a small, round connector located near the edge of the circuit board.

3. Align the MMCX Antenna​

  • Carefully position the MMCX antenna connector over the MMCX port.
  • Align the connector straight above the port to avoid damaging the pins inside.

4. Secure the Connection​

  • Gently press the MMCX antenna into the port until you hear or feel a "click," signaling a secure connection.
warning

Do not apply excessive force when attaching the antenna, as it may damage the port or connector.

5. Route the Antenna​

  • Position the antenna cable to ensure it doesn’t interfere with other components.
  • Use tape or cable ties to secure the antenna in place, if necessary, to prevent it from moving during operation.

6. Test the Antenna​

  • Power on the Dronetag device and check the signal strength or run a connectivity test to confirm the antenna is functioning properly.

Safe Disconnection Process​

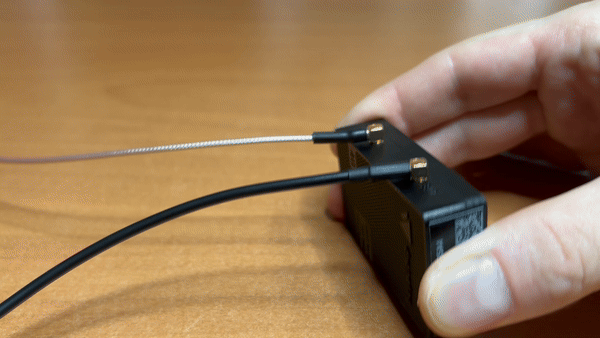

How to safely disconnect MMCX Connector

The MMCX connector is designed for a limited number of connect and disconnect cycles. To extend the lifespan of the connector and prevent damage:

1. Use a Suitable Tool​

  • Instead of pulling the antenna directly, use a small tool like the edge of a spoon to carefully lift the antenna connector from underneath.
  • Gently lever the connector upwards while supporting the antenna base. This prevents applying excessive force to the connector and port.

2. Avoid Direct Pulling​

caution

Pulling the antenna out by the cable can stress the connector and cause it to break. Always disconnect using the recommended method.

danger

Improper handling or forceful removal of the MMCX connector that results in damage will void the warranty or eligibility for repair. Always follow the guidelines provided to ensure the proper handling of your Dronetag device.
