Quick Start Guide

This section describes the basic operations of the device getting you from a new device to successfuly scanning.

User Interactions​

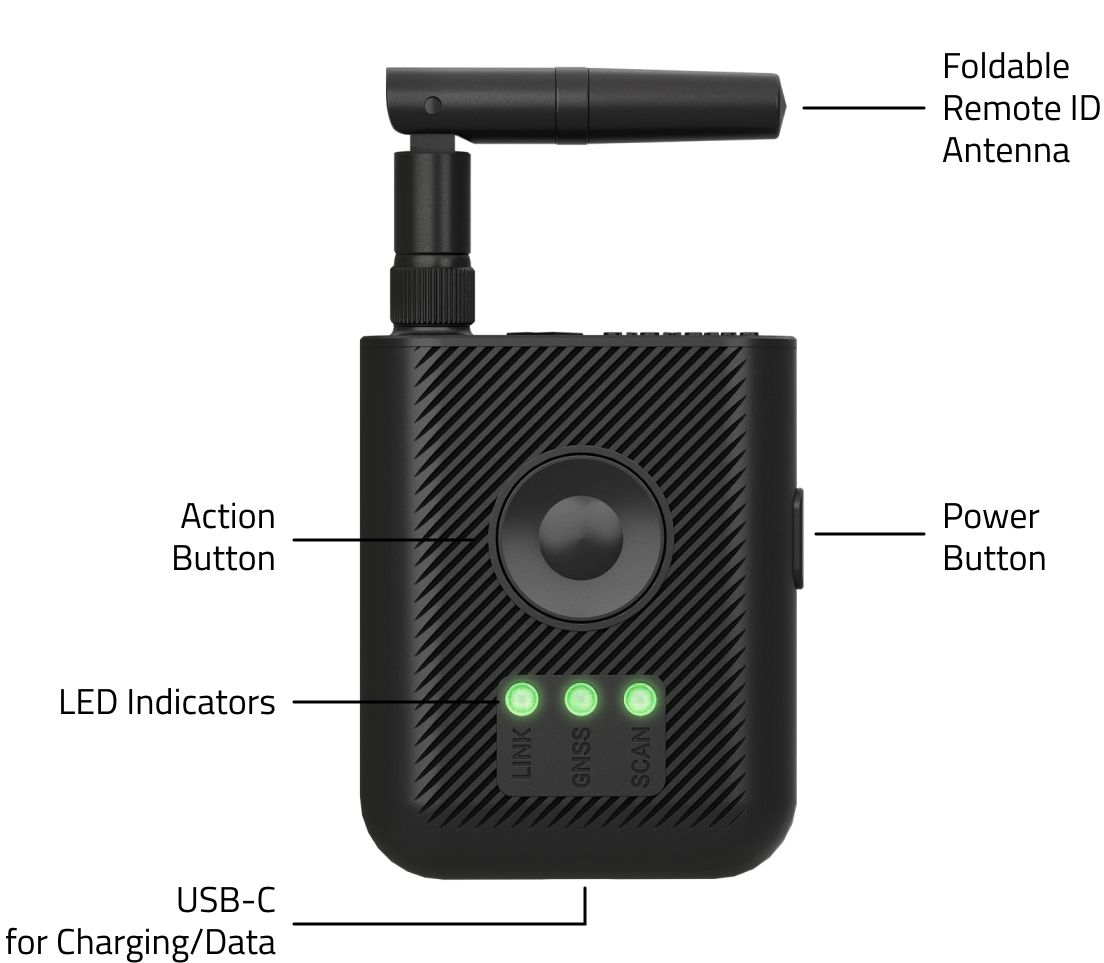

Dronetag RIDER is operated with the Power Button located on the side of the device and Action Button located in the middle of front side of the device.

Power Button:

  • Long Press (2 s): Switch the device ON or OFF
  • Short press (0.1 s): Start or stop scanning
  • Short press (0.1 s): Battery indication (while the device is turned off)
  • Extra-long press (15 s): Force device hardware restart

Action Button:

  • Short press (0.1 s): Turn Sound Alarm ON or OFF (RIDER will confirm sturning Sound Alarm ON or OFF with a sound signal) More programmable functions will follow in the future.

General usage​

The device usually works in all outdoor areas with GNSS signal. To quickly start scan:

  • Check the battery level while the device is turned off by a short Power Button press (0.1 s).
  • Turn on the device by long-pressing the Power Button (2 s).
  • Wait until all device components are ready and 3 LEDs transition to solid green.
  • Scanning will start automatically, or you need to confirm it with a short Power Button press (based on your auto scanning configuration).
  • Do your mission.
  • Switch off the device by a long Power button press (2 s).

Operating the device: Step-by-Step Guide​

To start live-viewing flights with the Dronetag RIDER, follow these steps:

  1. Charge the Device​

    Before your first use, fully charge the RIDER using the included USB-C cable. A full charge ensures uninterrupted operation during your sessions.

  2. Power On the Device​

    Press the Power Button to turn the RIDER on. Wait a few moments for the LED indicators to show the device’s status:

    • LINK: Informs about connectivity status with the cloud or a mobile device.
    • GNSS: Informs about the current state of the satellite positioning system.
    • SCAN: Informs about readiness to scan for Remote ID signals.

  3. Register with Your Dronetag Account​

    Sync your device with a mobile phone running the Dronetag app. This sync enables the device to save and transfer flight data effectively. You can download the app on both Android Play Store and iOS App Store.

    Download on the App StoreGet it on Google PlayAvailable as Web App

    You are required to have a Dronetag account, if you do not have one, please register in the app or follow the steps on: https://dronetag.app/signup

    Create a Dronetag account if you don’t already have one. After logging in:

    1. Go to Profile > My Devices > Register new.
    2. Select Dronetag RIDER and follow the on-screen instructions to configure your device.

    Please note that if you register a device in the web app, you must enter the device serian number manually.

  4. Confirm all LEDs are green​

    Please note that first use also means initializing internal SIM card, which can take a few minutes waiting for LINK LED gets green.

    • LINK: Connected to the cloud or a mobile device.
    • GNSS: Satellite fix acquired.
    • SCAN: Ready to detect Remote ID signals.

  5. Start Scanning​

    With the device powered on and detecting, it will automatically begin live-viewing any compliant drones in the area. If you have “Auto Scanning” disabled, you need to press the Power Button to start scanning. You can view real-time information and monitor recorded flights through the connected mobile app.

  6. Test Before You Deploy​

    We recommend table-testing your Dronetag RIDER to confirm it’s ready for real-world operation. 

    You can use any Remote ID compliant Drone (see the “What can I expect to detect?” section of this manual) or a standalone Remote ID transmitter like the Dronetag Beacon / Mini / BS. If you do not have a Remote ID device for testing please reach out to us.

    Perform a simple test:

    1. Follow the setup instructions above to enable Dronetag RIDER.
    2. Use a Remote ID device near your Dronetag RIDER. (Don´t forget that if you use a drone for testing, you have to take off with it to start transmitting the Remote ID signal.)
    3. Ensure your RIDER detects the Remote ID device and live-viewing the data properly in the app.
