What is in the Box

At Dronetag, we strive to deliver the most functional and reliable solutions for your remote ID needs.
Each Scout package is carefully assembled to ensure you have everything required for a smooth and efficient setup.

Baseline

Scout Baseline

Once you receive your Scout device with its basic configuration, you should find everything neatly packed in the delivery box. Here’s what to expect when unboxing your new Scout system:

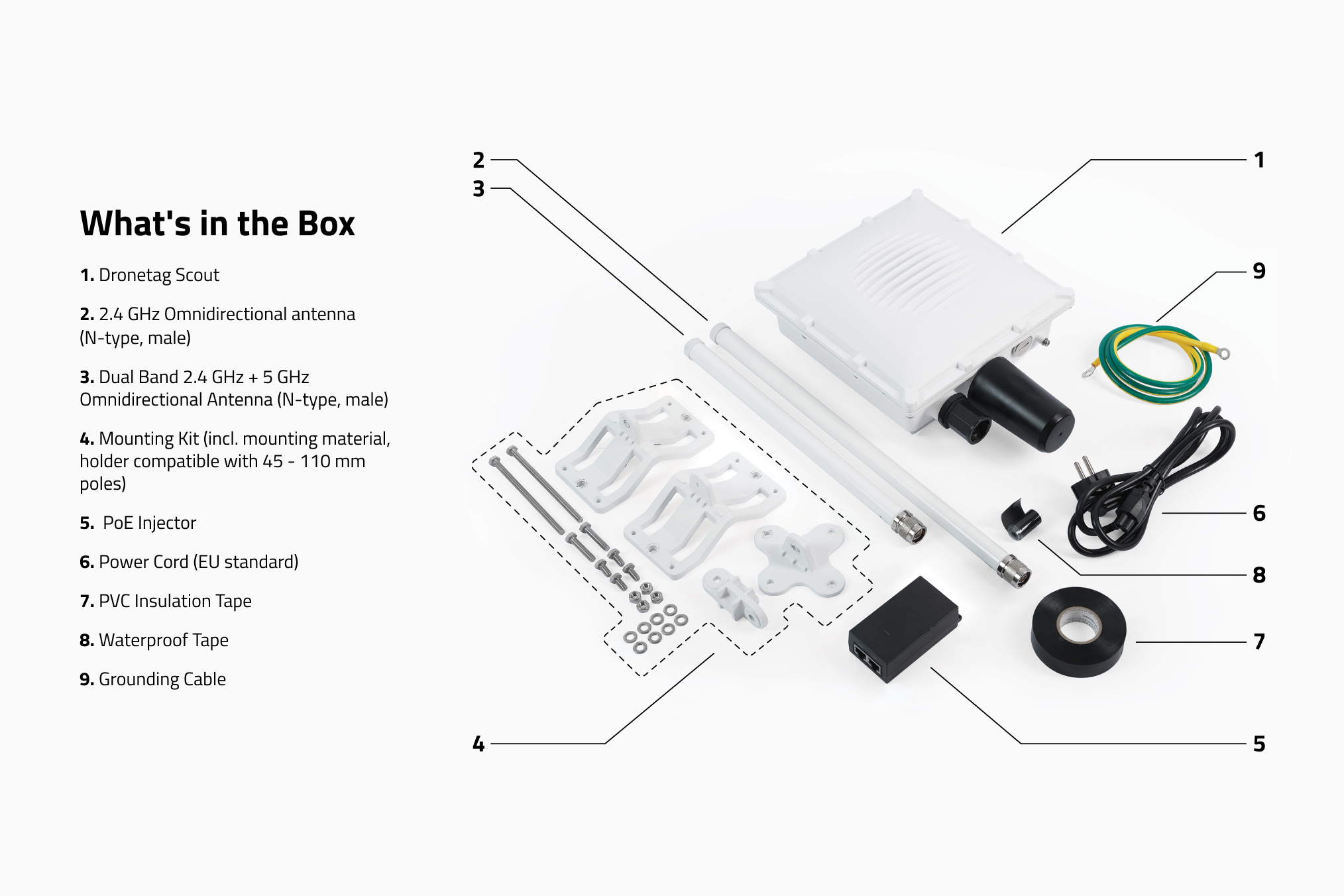

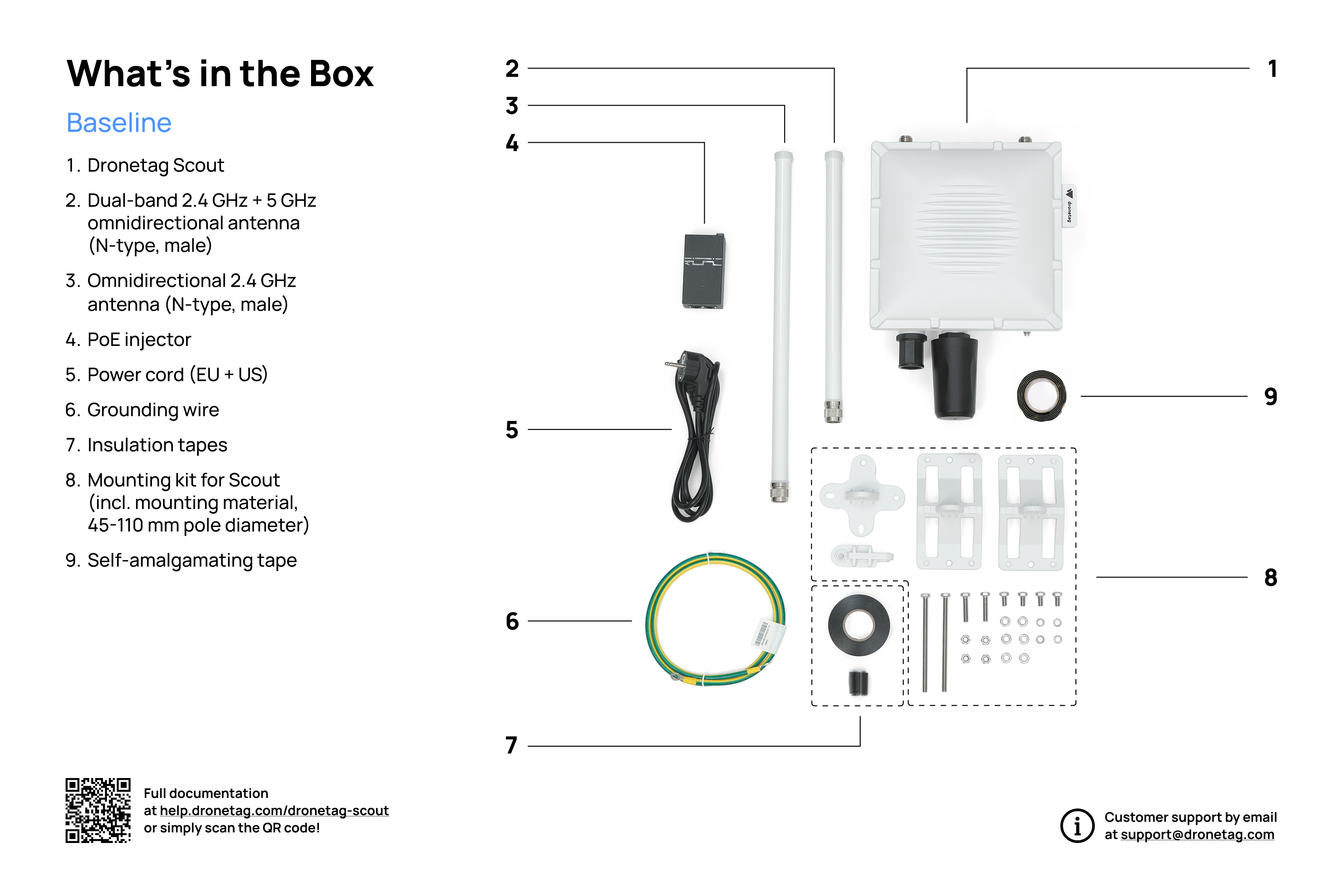

This image illustrates the standard contents included in the Scout baseline package.

PACKAGING SIZE INFO

The Scout package comes in a sturdy box with the following dimensions:

450 mm x 300 mm x 150 mm

This compact size ensures the contents are well-protected during transport while still being easy to handle.

Directional Antennas

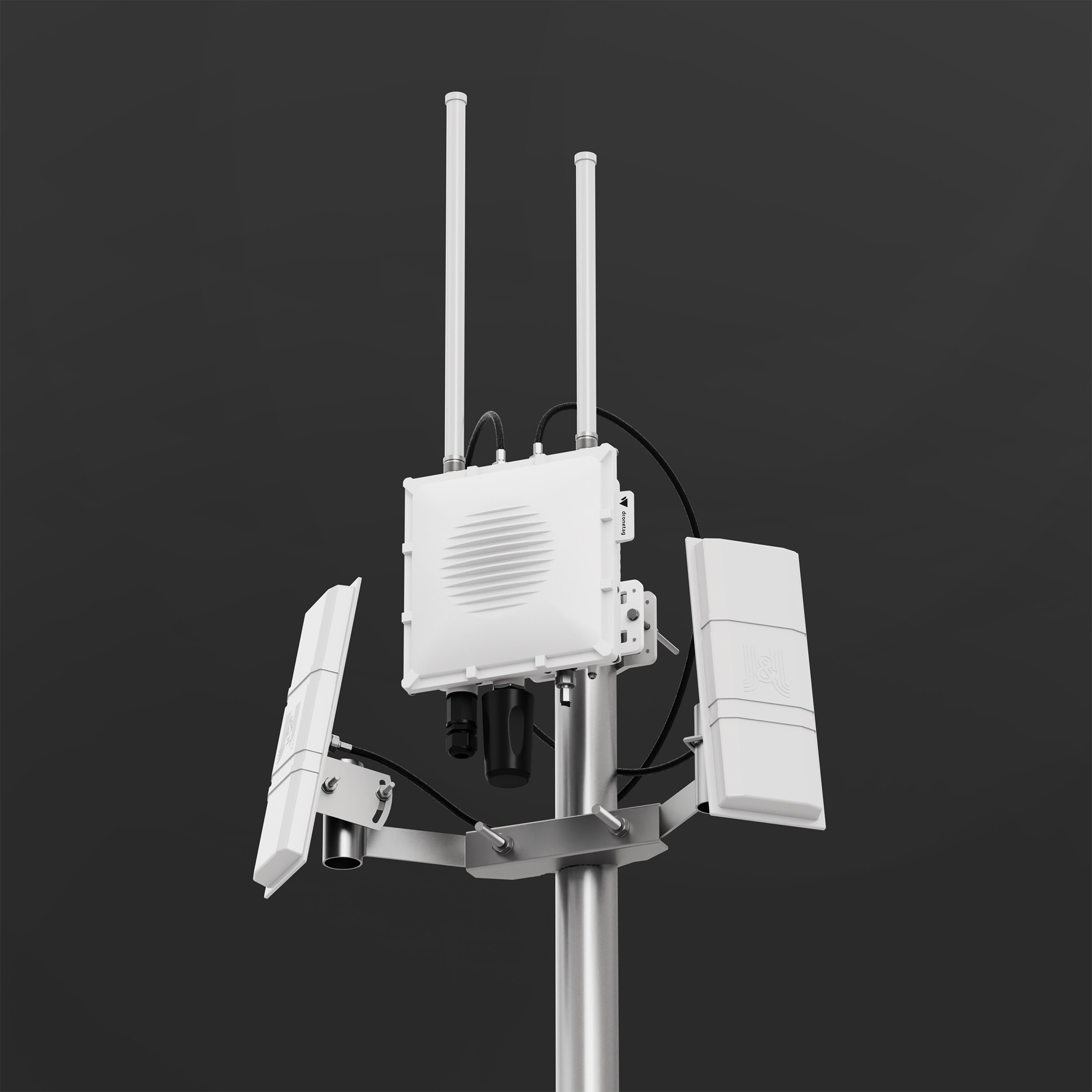

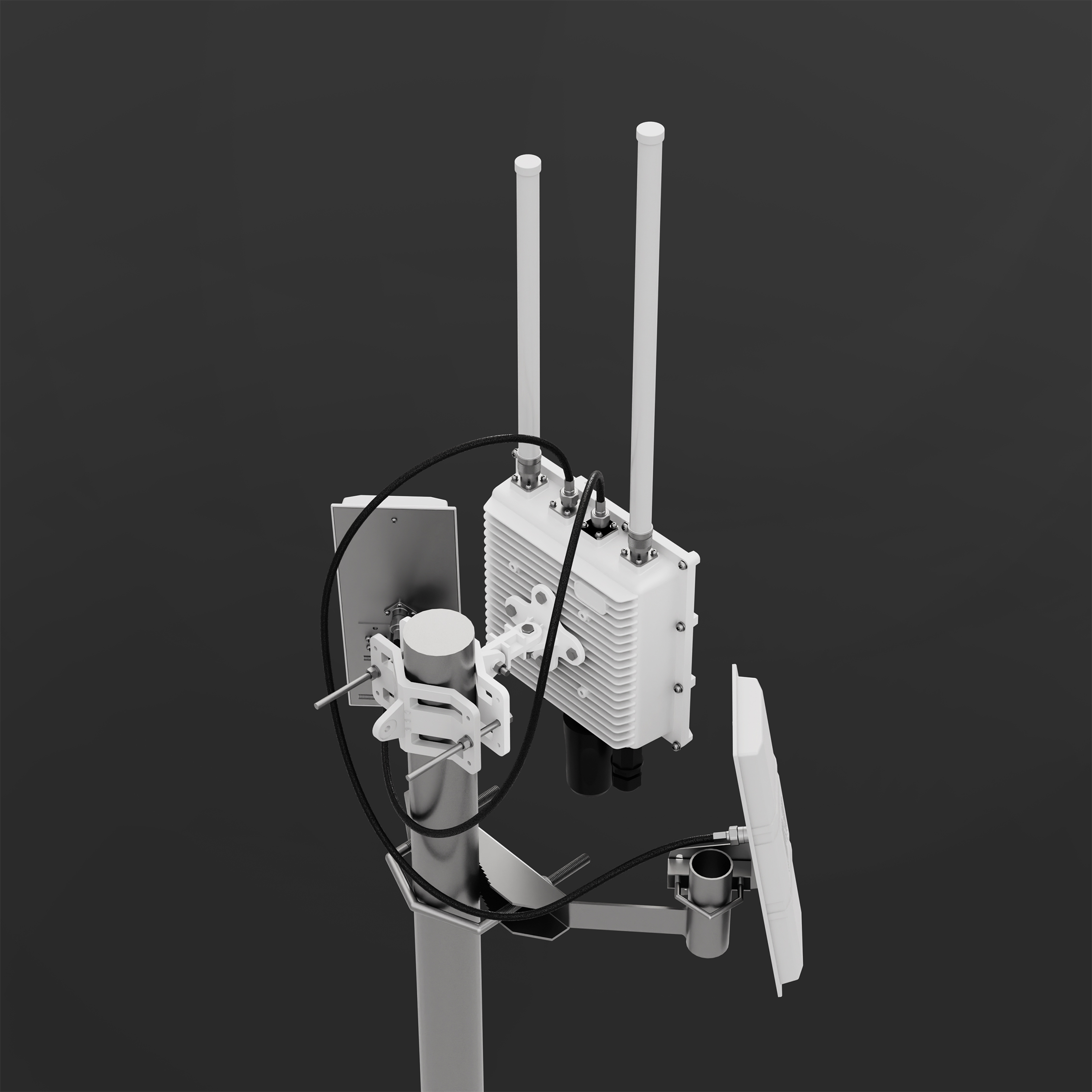

Scout with Directional Antennas

Once you receive your Scout device with the directional antennas configuration, you’ll find everything neatly packed in the delivery box. Here’s what to expect when unboxing your new Scout system.

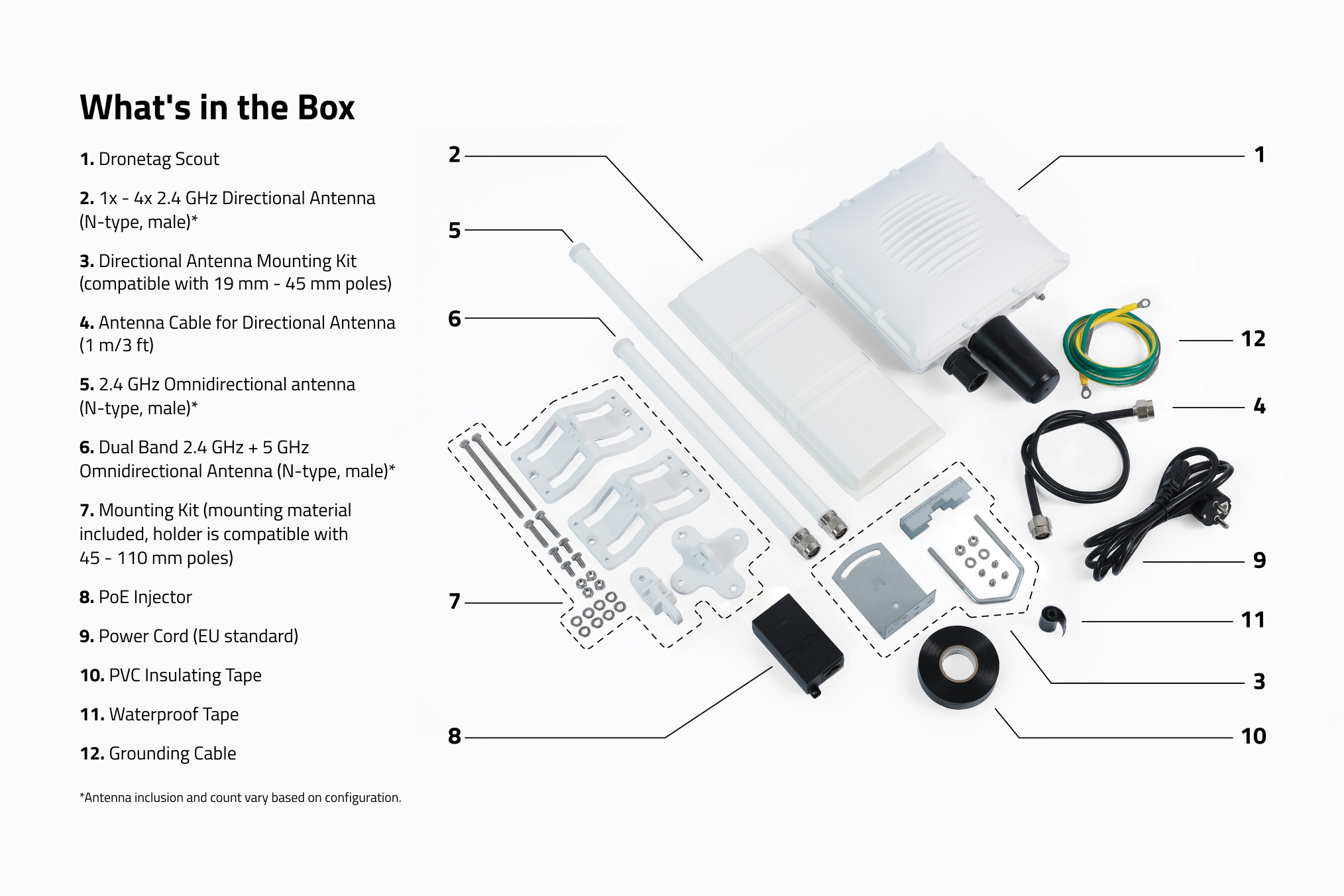

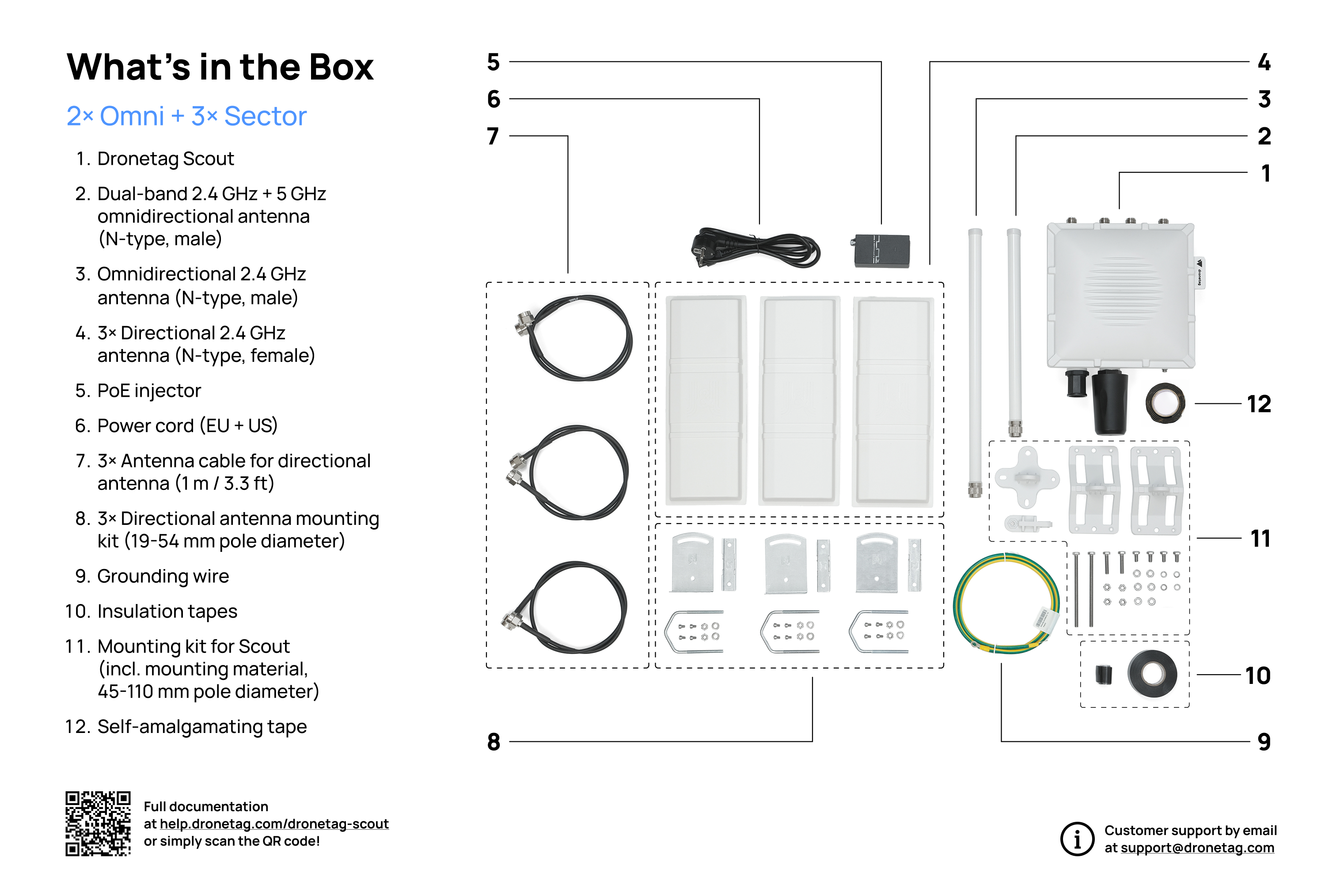

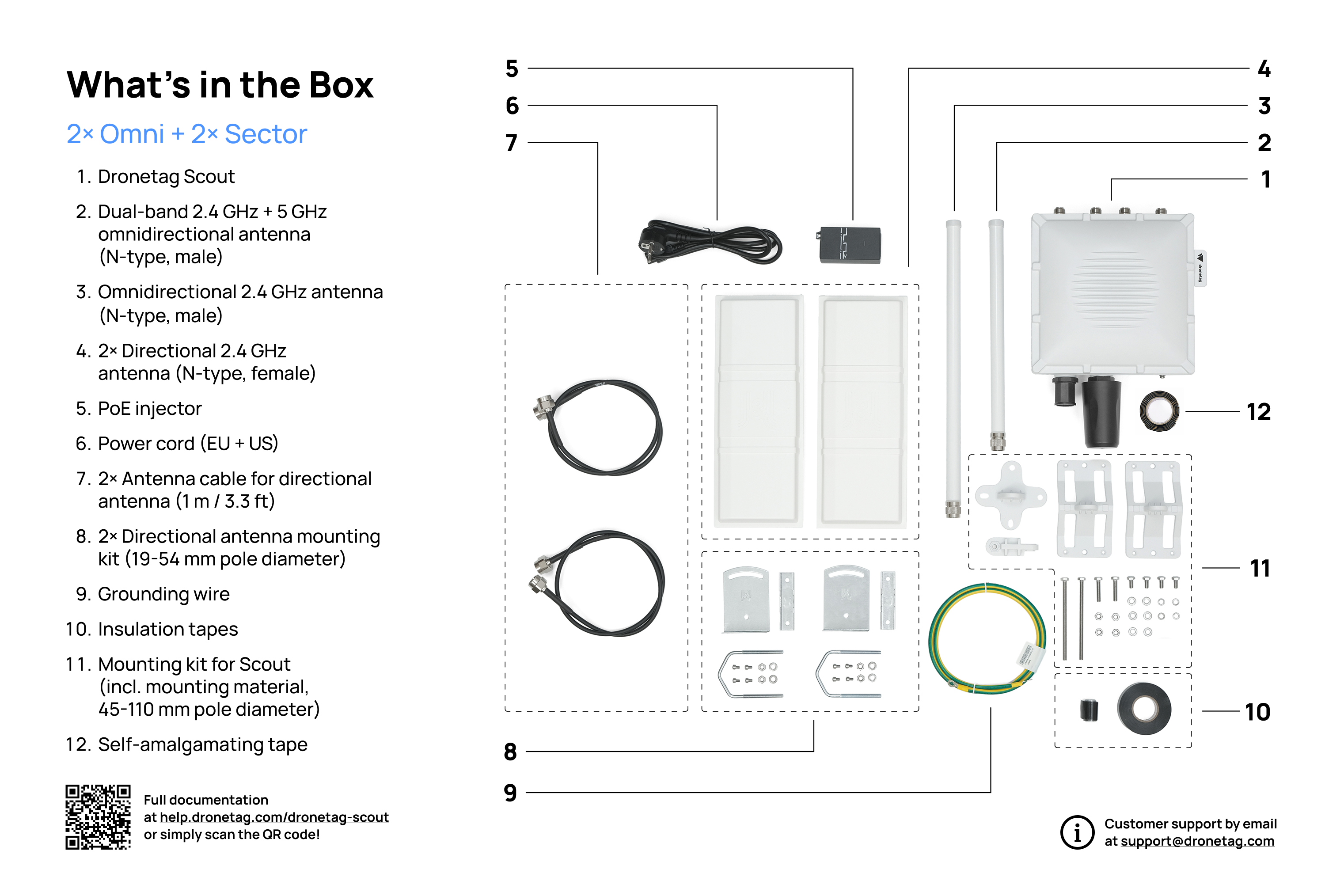

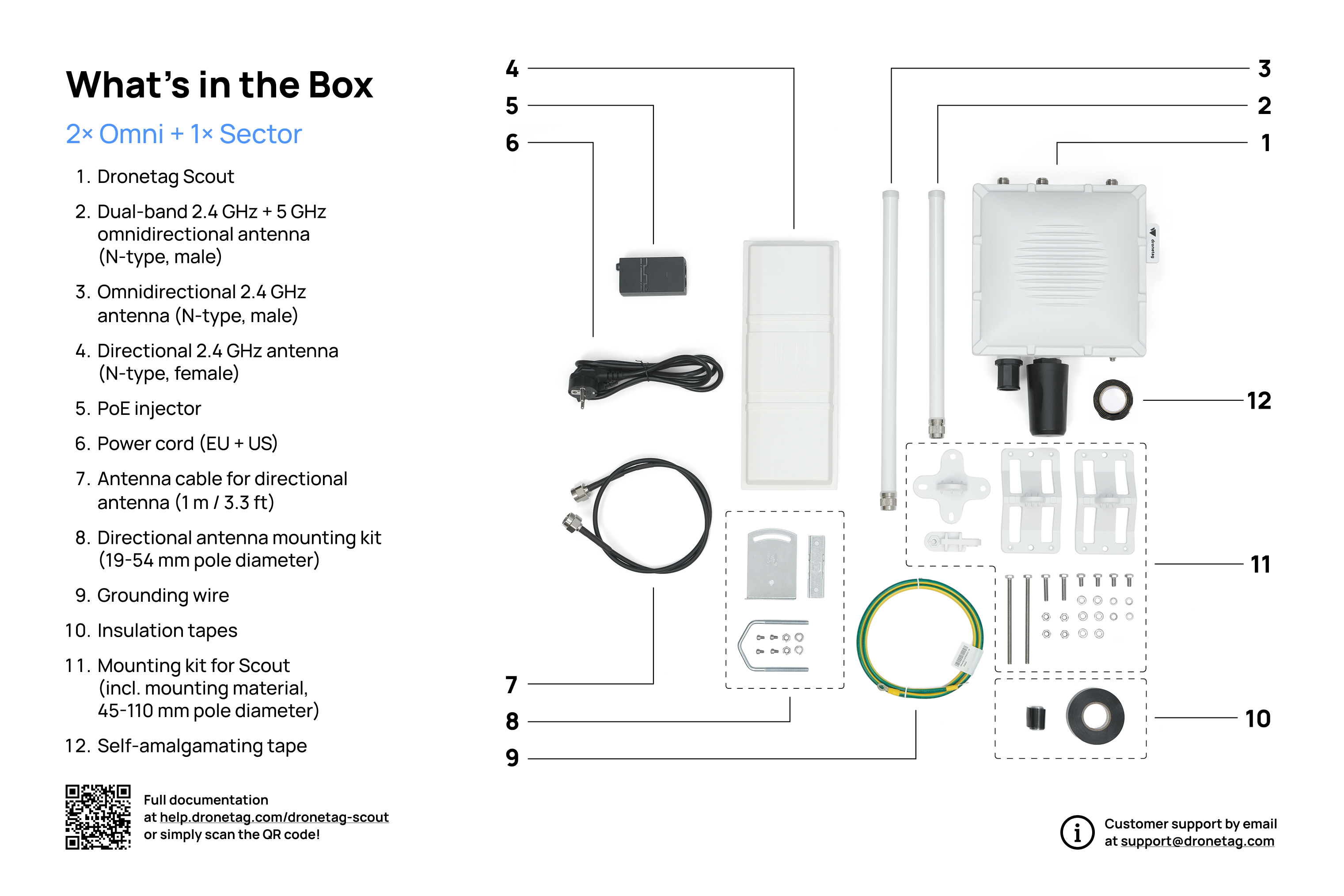

This image illustrates the standard contents included in the package of Scout with directional antennas.

note

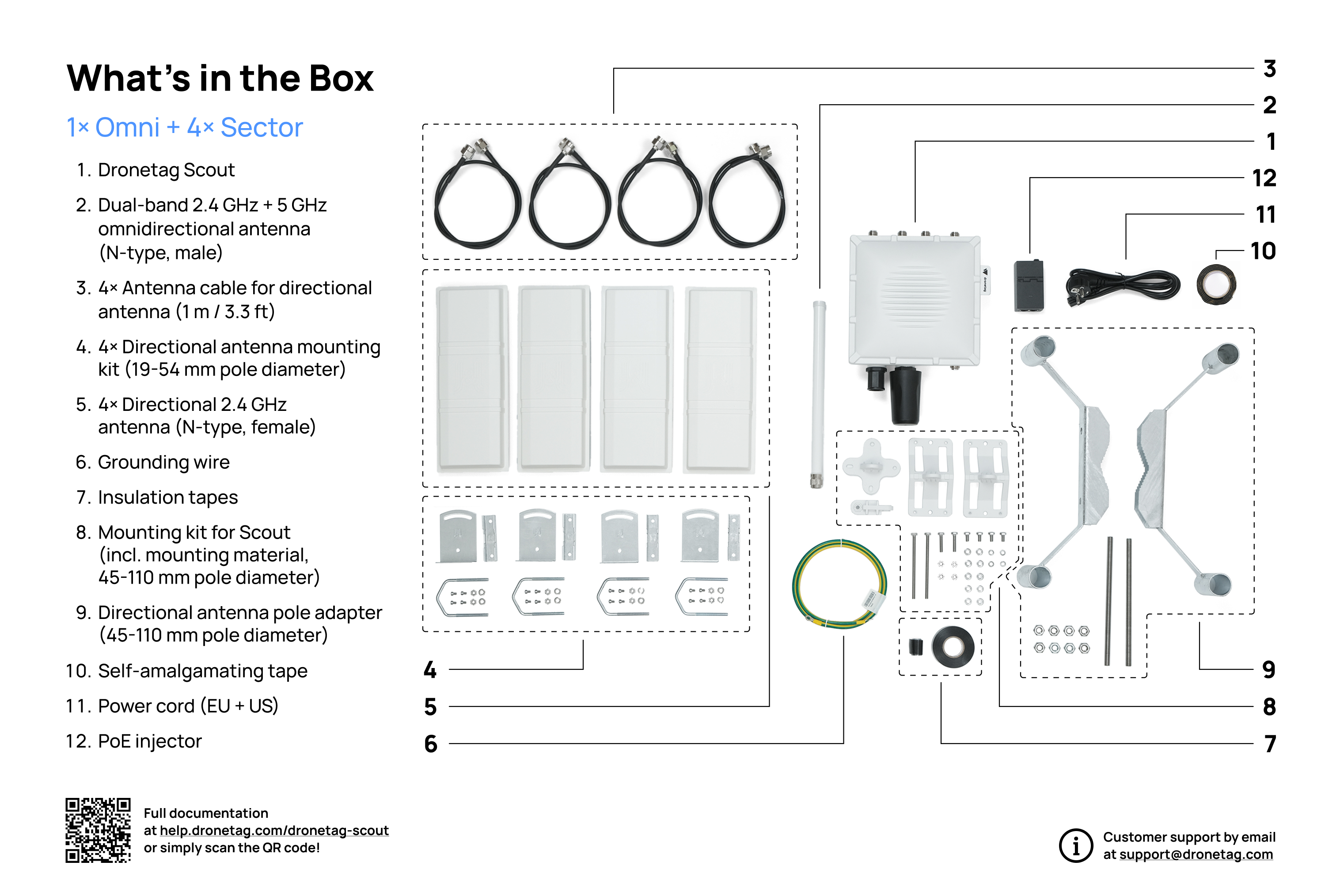

The Scout can be configured with a different number of directional antennas. If your setup includes four (4) directional antennas, a 2.4 GHz omnidirectional antenna is not included in the package.

PACKAGING SIZE INFO

The Scout with directional antennas package comes in a box with with adjustable height and has the following dimensions:

435 mm x 335 mm x 140-240 mm

The height setup depends on the specific Scout configuration. This size ensures the contents are well-protected during transport while still being easy to handle.

LTE version of Scout

LTE version of Dronetag Scout, with ordered connectivity, includes micro-SIM card, which is already plugged in the device.

When there is no connectivity ordered, Scout comes with no micro-SIM card plugged in the device and user needs to plug his own micro-SIM card in. Here is a Step-by-Step Guide how to do it.

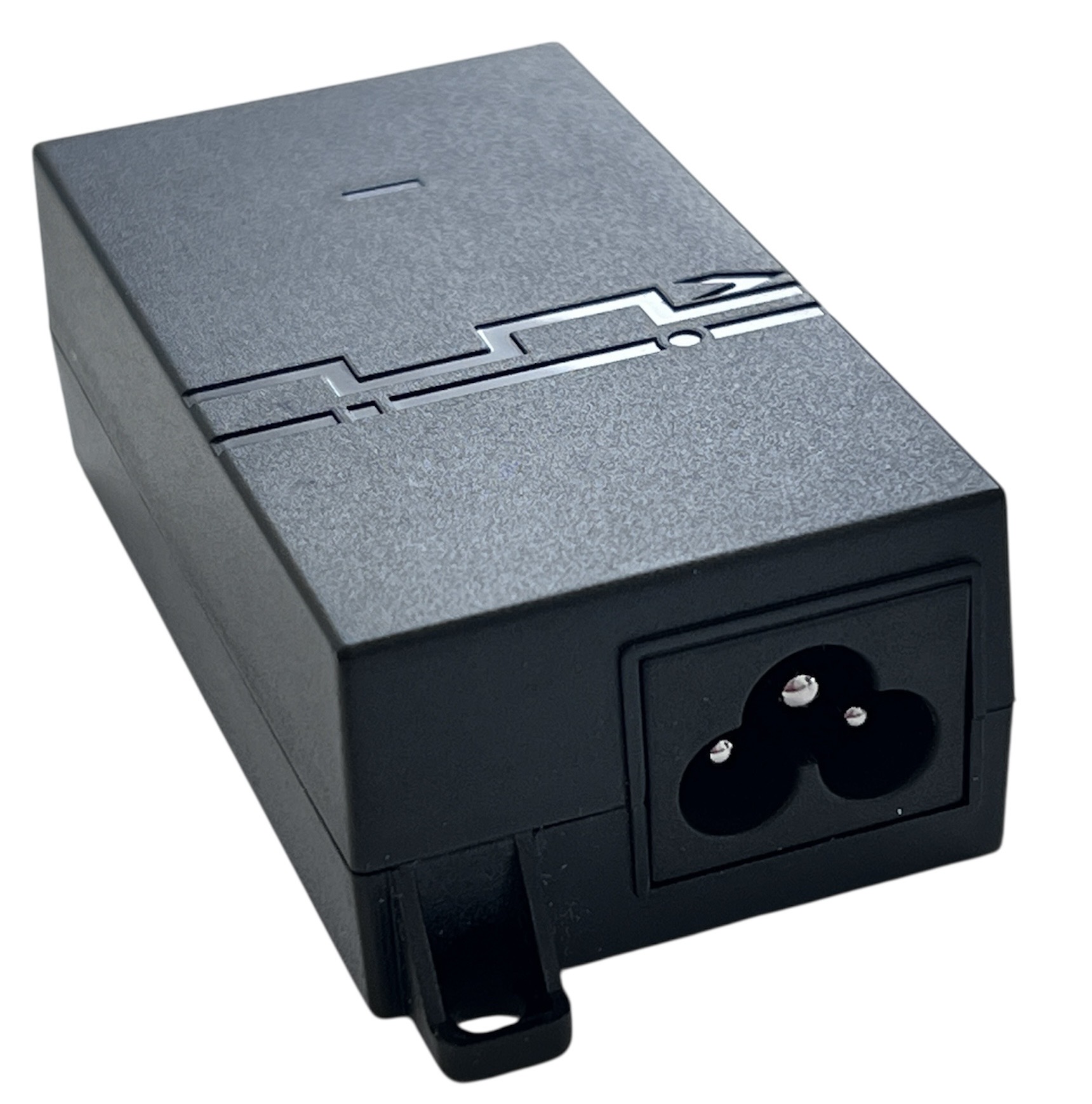

PoE injector

The PoE injector is a device that allows you to combine power and network connectivity to your PoE enabled devices using the same Cat5/5e or Cat6 twisted pair cable.

note

In the case you want to use your own PoE switch, it must have appropriate standard.

note

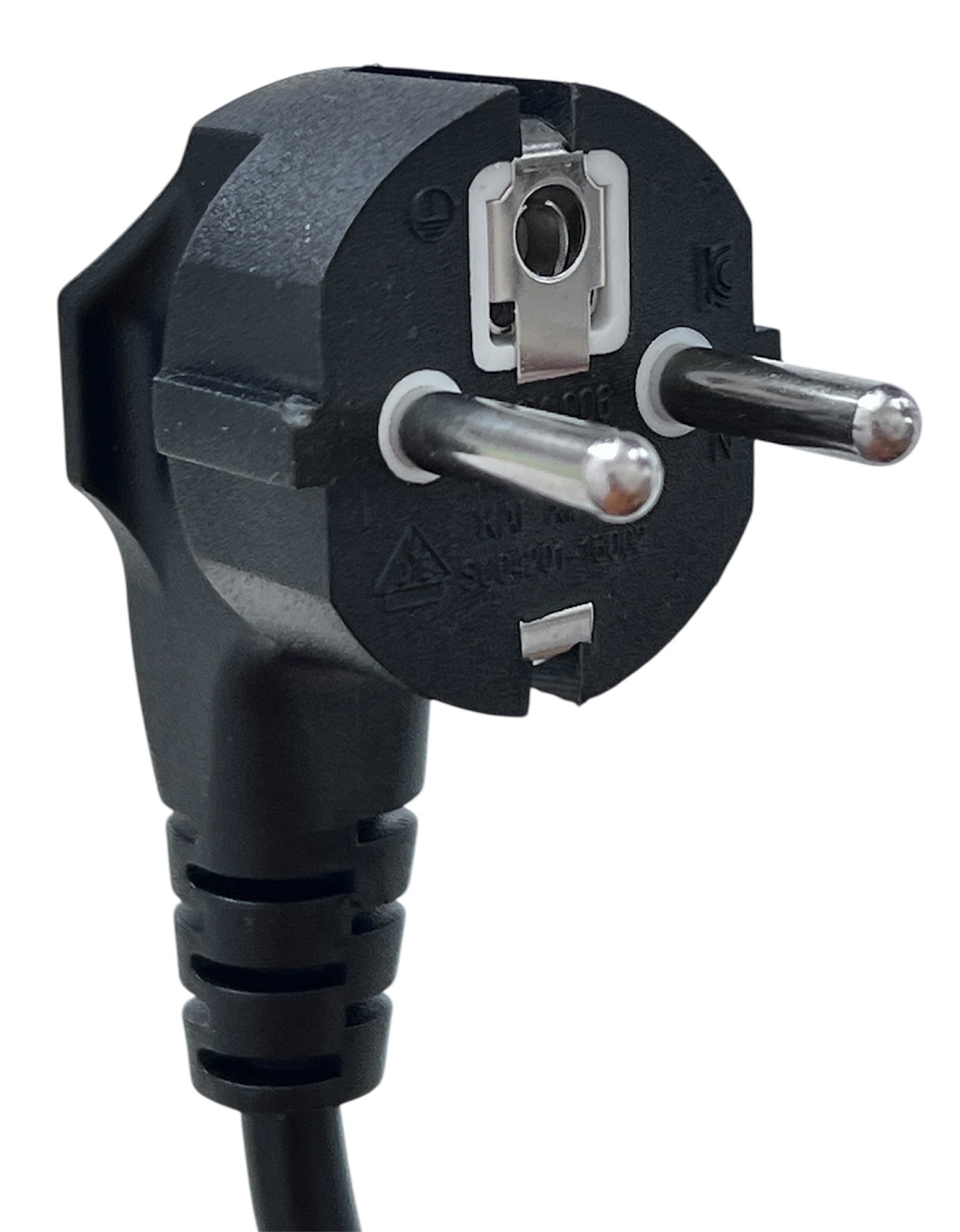

We supply the PoE injector with EU standart socket only now. From Q3/2025 you can choose from EU or US standard socket.

warning

It is ideal to place the PoE injector indoor. It has to be placed in dry place with constant temperature. PoE injector is not waterproof.

PoE Features:

• Input: 100-240 V AC (50~60 Hz)
• Output: 48.0 V DC 0.5 A
• Overcurrent protection
• Supports 10/100 Mbps Ethernet
• 92.5x47x29.8 mm (±1 mm)

Dronetag s.r.o. carries no responsibility for wrong usage or wrong installation.

What is required to operate the Scout?

• Power source
• Ethernet cable dedicated for outdoor use (cat. 5 and higher)
